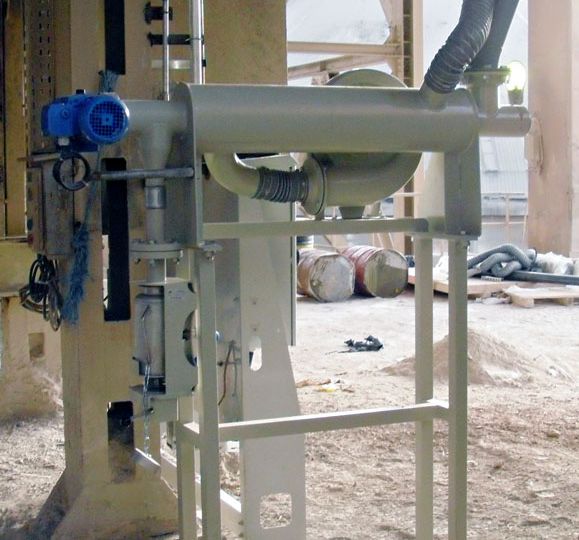

Hot meal sampler
PC303

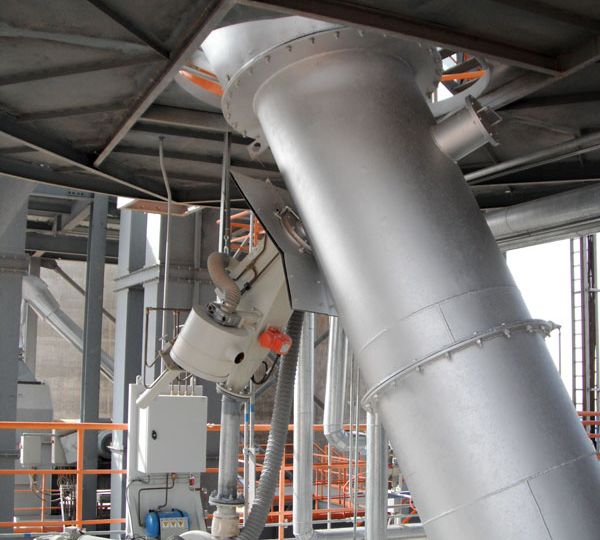

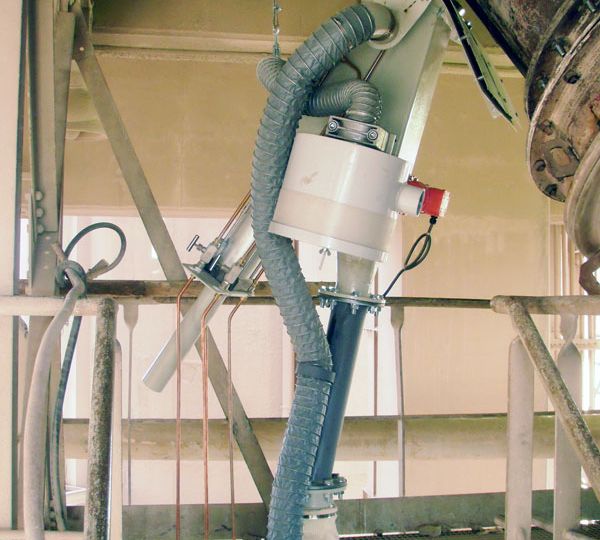

Solution specially designed for collecting a sample at the bottom of the pre-calciner tower under the last stage of cyclone.
Refractory steel sampling head operated by pneumatic cylinder
Built-in systems to stop the decarbonation reaction (air quenching) and to clean the sampling head between each cycle
Can be operated either independently or in combination with one of our analysers or our cartridge sample transport system.
Maximum sample temperature : 1150 °C
Sample volume : ± 500 cc
Main advantages
- Operator safety guaranteed when compared to manual sampling
- The vented air used for sample quenching is also used for thermal protection of the sampler
- Protective shield against thermal radiation
- Very few moving parts
