Solution specially designed for transporting clinker in raw state downstream of a sampling point

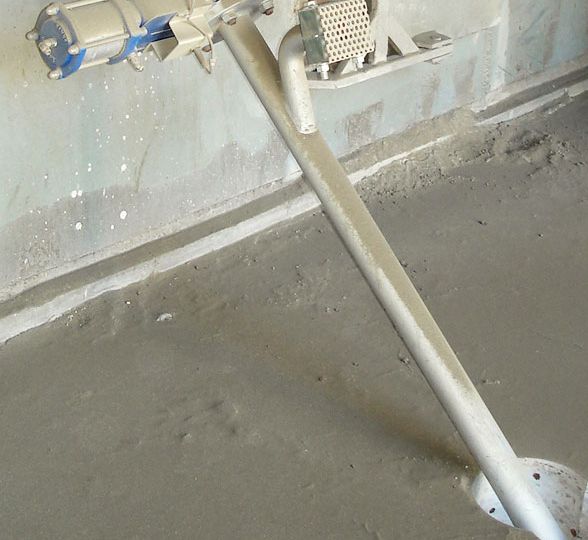

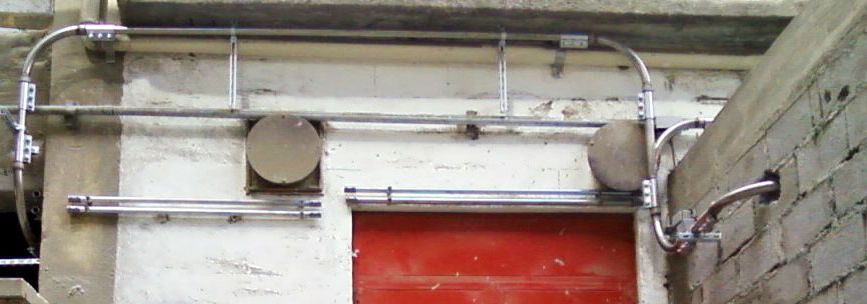

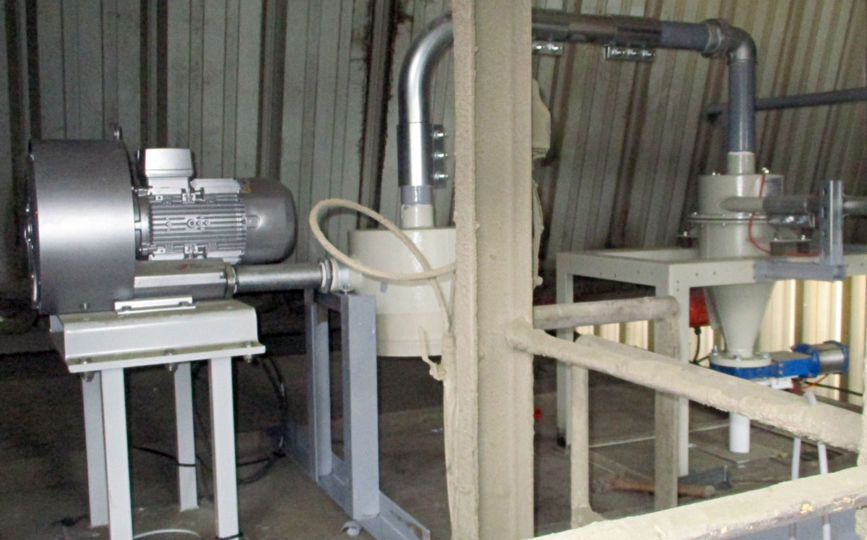

System composed of one or more sending stations, a set of stainless steel pipes and bends assembled together by airtight clamps and a receiving station including a cyclone, a filterand a vacuum pump

Can be operated either independently or in combination with our free lime analyseror upstream of our cartridge transport system

Maximum transport distance : 200 m

Maximum height difference : 12 m

Maximum clinker particle size: 12 mm

Maximum transported volume: up to several litres – Regular: 300 cc

Maximum clinker temperature : 400 °C

• Custom-madesizing
• High flexibility
• Quick and easy to install
• Easy to service
• Up to 2 transport lines connected to a single receiving station
